Thermal-Barrier Profile Effective Inertia (I_eff)

Sample Ieff Calculation Report

Explore a sample effective inertia (I_eff) report prepared by our facade team. All calculations follow EN 14024 (Eurocode). This reference can support profile selection, engineering validation, and serviceability/safety checks for curtain wall and window systems.

View Sample Report

Need independent facade consulting for your project?

I_eff Calculator for Thermally Broken Profiles [ EN 14024 Annex C ]

According to EN 14024, the effective moment of inertia (I_eff) of a thermally broken profile is computed by considering the shear-flexibility of the thermal barrier. The result represents the real stiffness used in strength and deflection checks.

For safe design, professional engineering verification is essential. For details and support, please contact your facade consultant.

Report Header

Project Subject Prepared by Approved by

Inputs

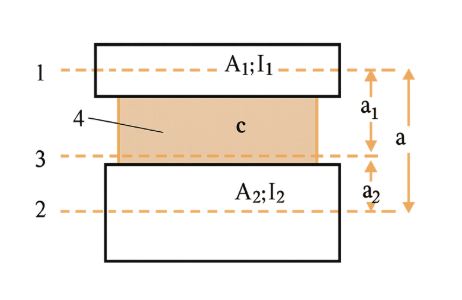

A₁ mm² I₁ mm⁴ A₂ mm² I₂ mm⁴ a₁ mm a₂ mm a (optional) mm E N/mm² c (Thermal barrier shear modulus) N/mm² L mm

Results

I_s

–

mm⁴

–

I_eff

–

mm⁴

I_eff/I_s

–

I_eff

–

cm⁴

Ieff – L Chart

Note / Disclaimer: This calculator provides an indicative approach for aluminium profile stiffness (required inertia). It is for preliminary use only. Final design decisions must be checked and approved by competent engineers according to relevant standards. BEUS Facade accepts no liability for any application solely based on these results.

Thermal-Barrier Profile Effective Inertia (Ieff)
